Control Valve Parameter Description
• Valve type: Straight-through type, Angle type
• Valve cover form: Standard type, cooling type, low temperature type
• Traffic characteristics: Waiting percentage, linear, fast opening
• Pipeline connection method: Flanged welding
• Applicable temperature range: -30℃~260°C；-196°C~ 570°C
Overview

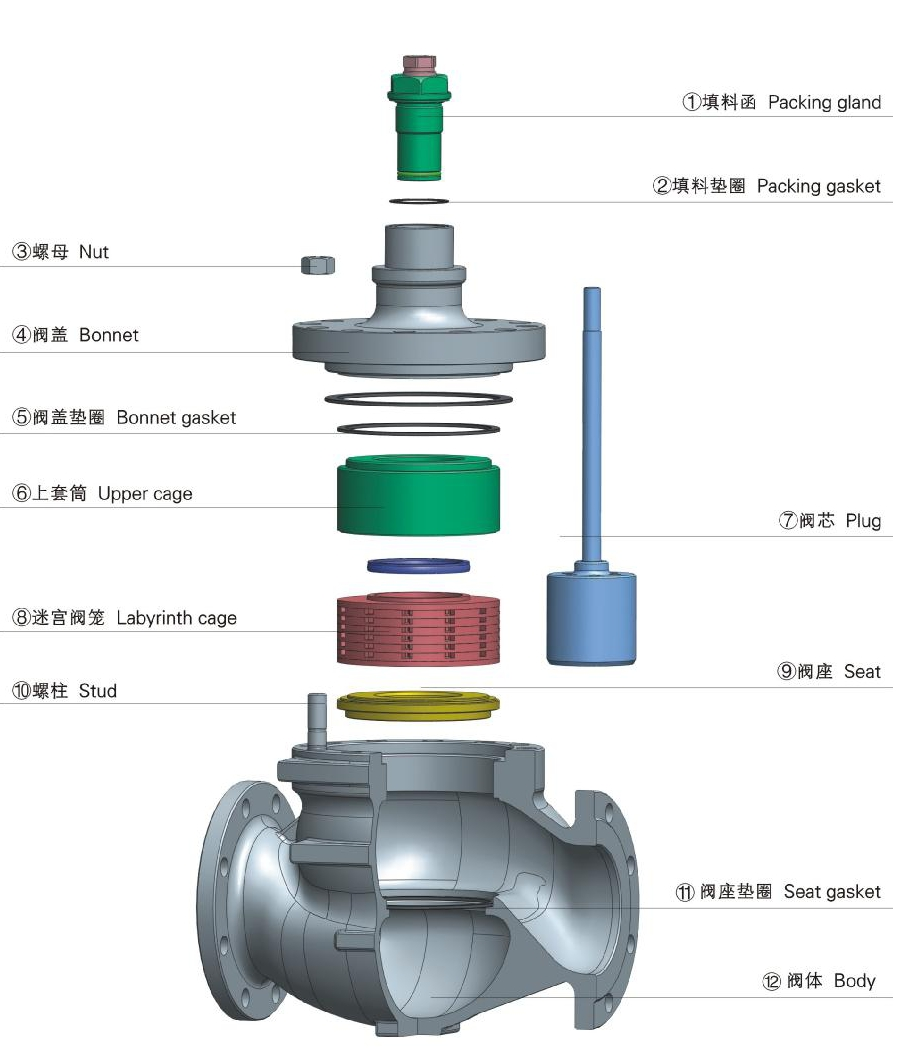

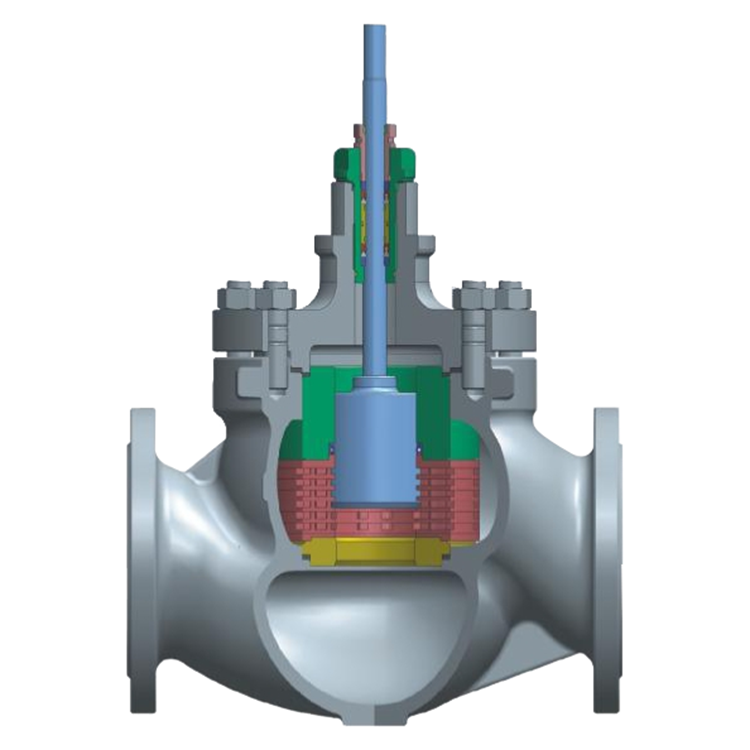

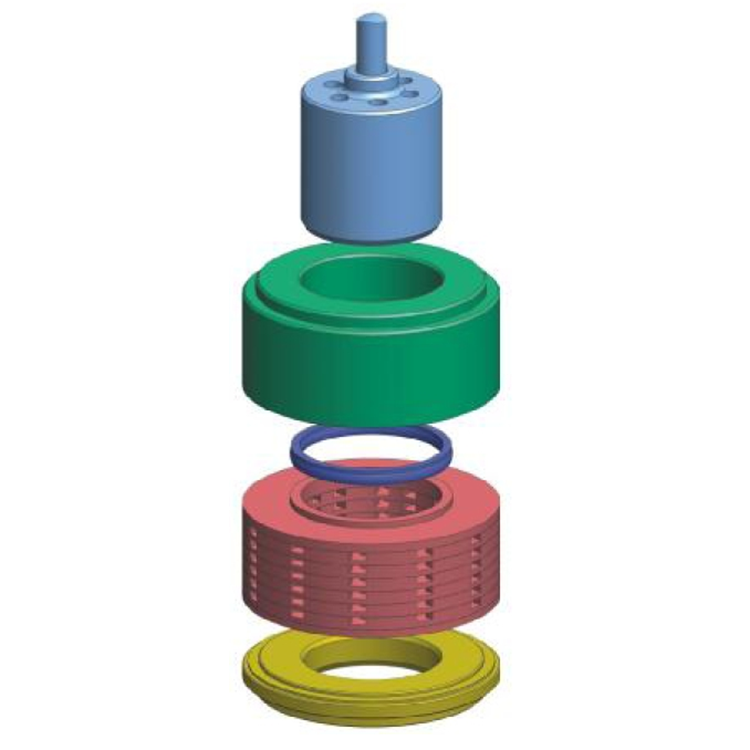

The 10M series of balanced maze regulating valves is designed with a mazevalve cage combined with a balanced valve core. The maze sleeve consists of a cylindrical disc with a diameter of the maze with a variety of coaxial surfaces. Depending on the media process parameters, the design of different curved diameters and the overlapping layer formation valve cages are designed. The valve cage divides the total flow tract into many small roundabouts and even step-shaped flow runs. The pressure of the circulation area gradually reduces the pressure of the fluid to prevent the occurrence of offlash and vacation and extend the service life of the inside of the valve. The tightly coordinated coordination of the balanced sleeve valve core, the valvecore, and the valve seat ensures an extremely low leak. Such parts in this valve are suitable for various operating conditions that are susceptible to blocking flows and causing air erosion.
Control Valve Parameter Description
| Features in the valve | Sleeve-oriented, balanced inner part structure |
| Mystery disc valve cage combination | |
| Valve type | Straight-through type, Angle type |
| Valve cover form | Standard type, cooling type, low temperature type |
| Traffic characteristics | Waiting percentage, linear, fast opening |
| Leakage level | ASME B16.104V (Standard Metal Valve Block) |
| ASME B16.104VI (cutting soft valve seat) | |
| Pipeline connection method | Flanged welding |
| Applicable temperature range | -30℃~260°C |
| -196°C~ 570°C | |
| Executive mechanism type | Pneumatic thin-film execution agency |
| Pneumatic piston execution agency | |
| Electric actuator |
