Control Valve Parameter Description
• Valve type: Straight-through type, Angle type
• Valve cover form: Low temperature type, ripple tube type
• Traffic characteristics: Waiting percentage, linear, fast opening
• Pipeline connection method: Flanged welding
• Applicable temperature range: -196°C~ 570°C
Overview

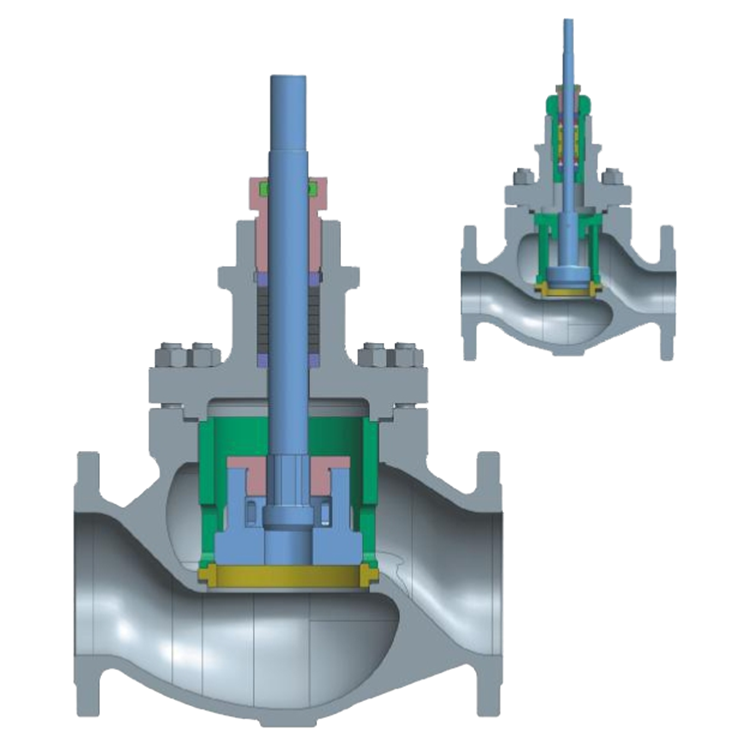

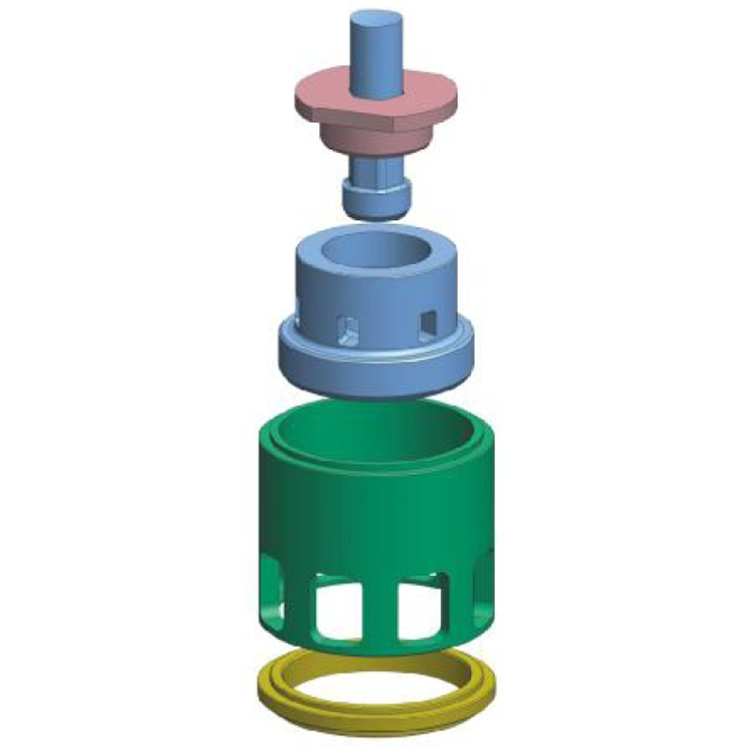

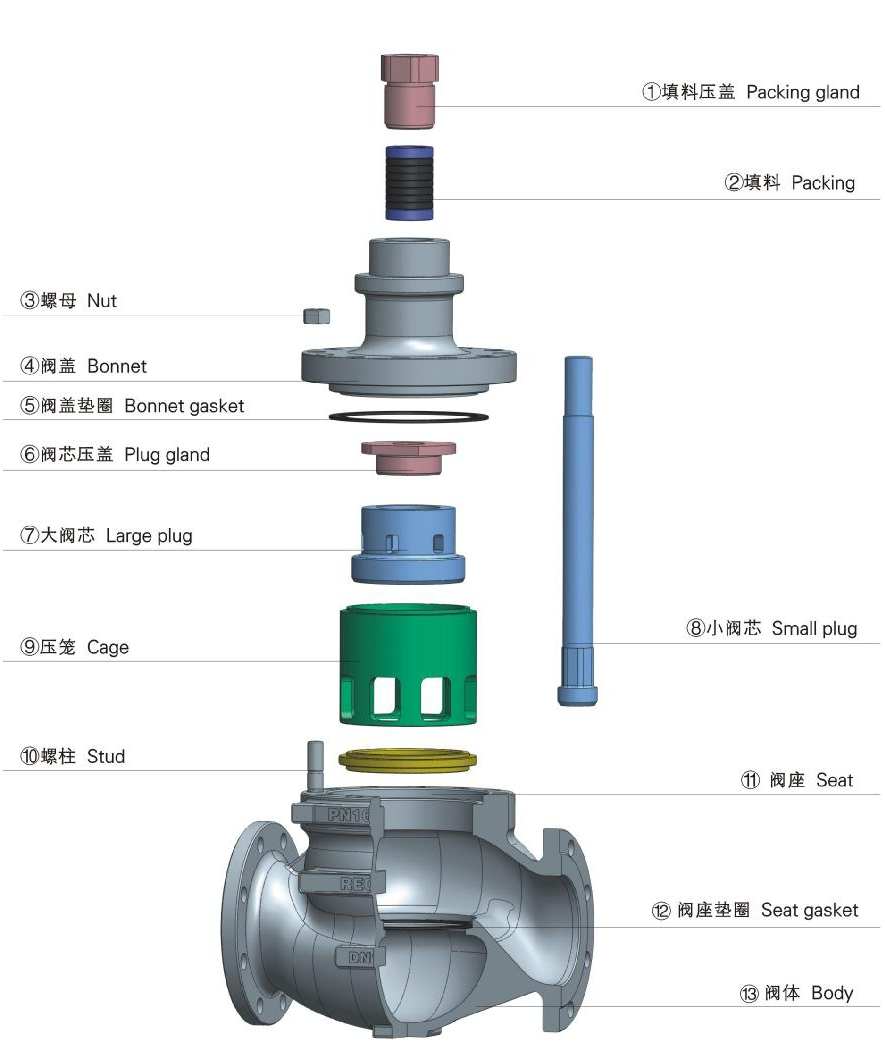

The 10Q series unbalanced cutting valve uses a top-oriented, pressure-unbalanced valve core, which is suitable for occasions with small pressure differences. The valve core and the surface of the valve seat are stabilized for long-term operation of the valve. For the cutting of the medium temperature and large pressure difference, we specially designed the dual valve core leakage pressure cutting valve for this. The inner part of this type of valve adopts a dual valve core structure and a flow control design. When the valve is turned on, open the small valve core first. The small valve core has a small area of power. Therefore, the force is less force to open. After the valve core is turned on, the pressure of the valve is released. Greatly reduced, as long as the force is made through a smaller execution agency, the large valve core can be turned on. This structure of the valve can well meet the cutting-off of high pressure differences.
Control Valve Parameter Description
| Features in the valve | The Sleeve-oriented, balanced inner part structure |
| Pores of porous valve cage combination | |
| Valve type | Straight-through type, Angle type |
| Valve cover form | low temperature type, ripple tube type |
| Traffic characteristics | Waiting percentage, linear, fast opening |
| Leakage level | ASME B16.104VI (Standard Metal Valve Block) |
| Pipeline connection method | Flanged style, welding |
| Applicable temperature range | -196°C~ 570°C |
| Executive mechanism type | Pneumatic thin-film execution agency |
| Pneumatic piston execution agency | |
| Electric actuator |
